Water Tank:

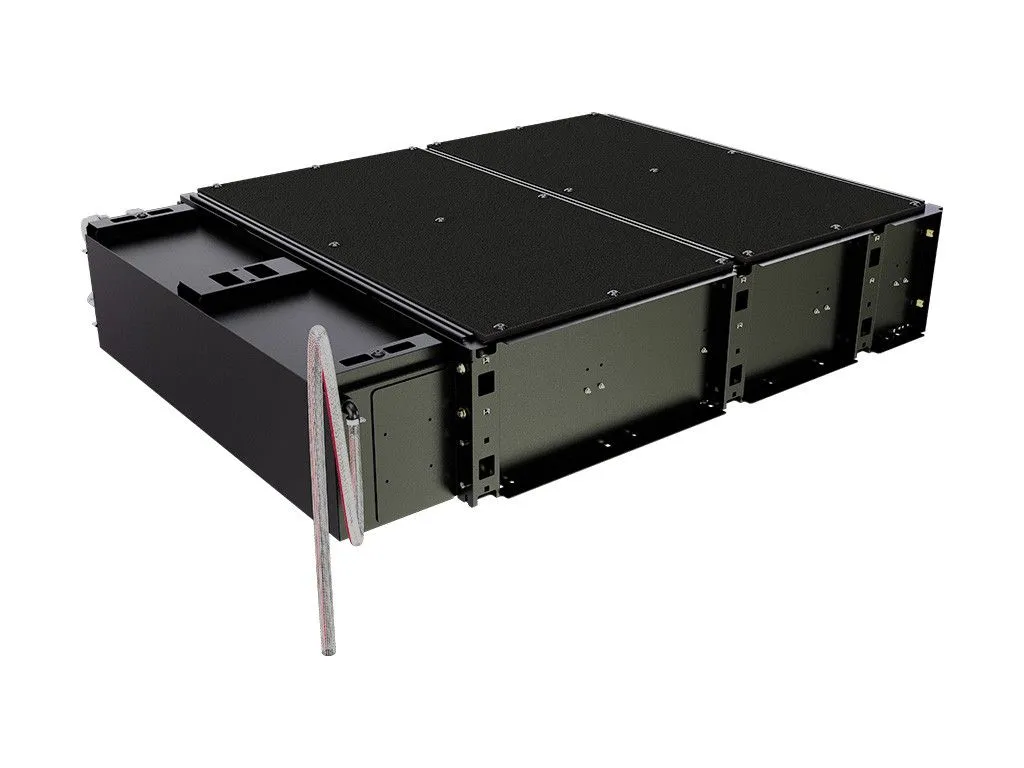

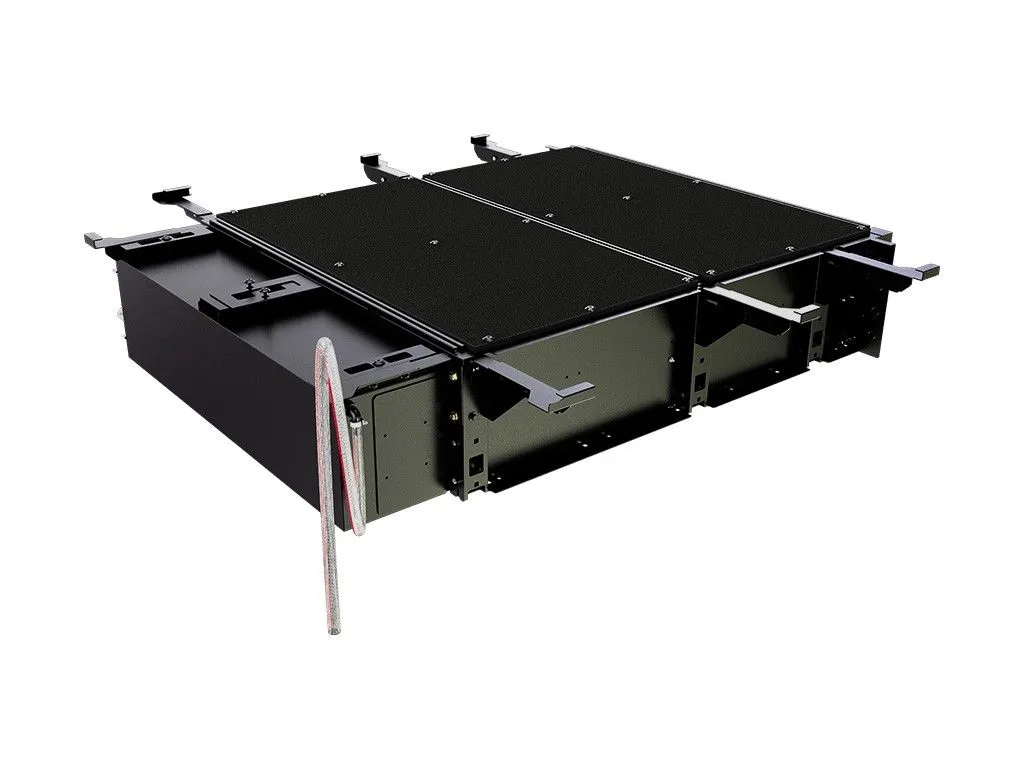

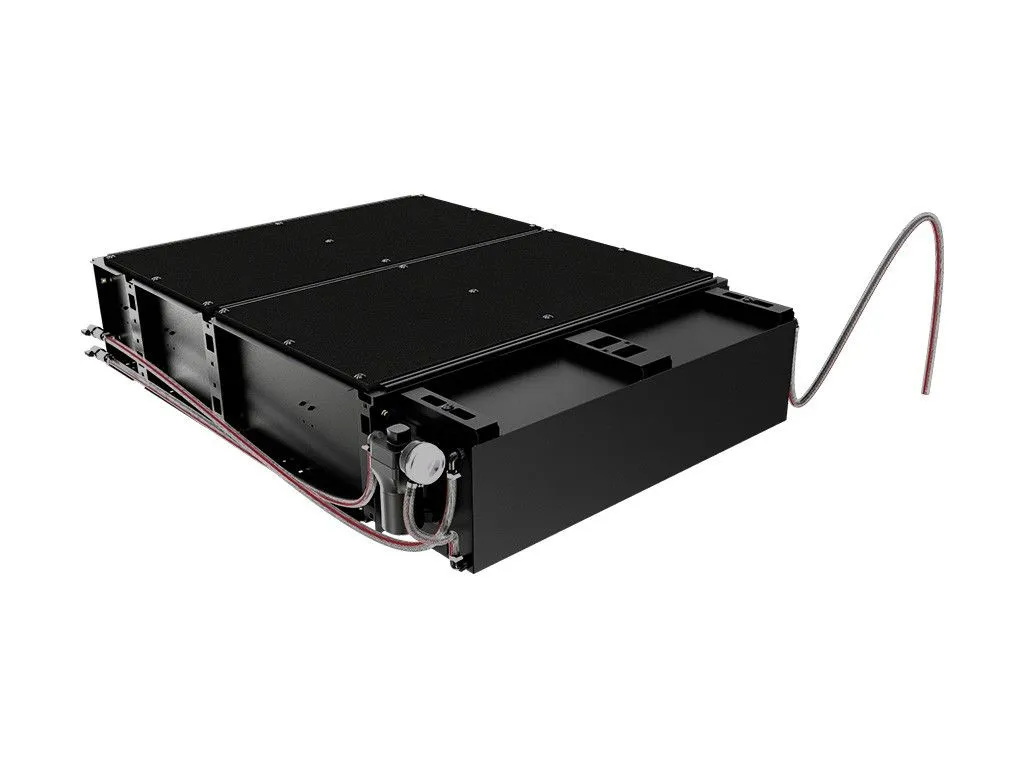

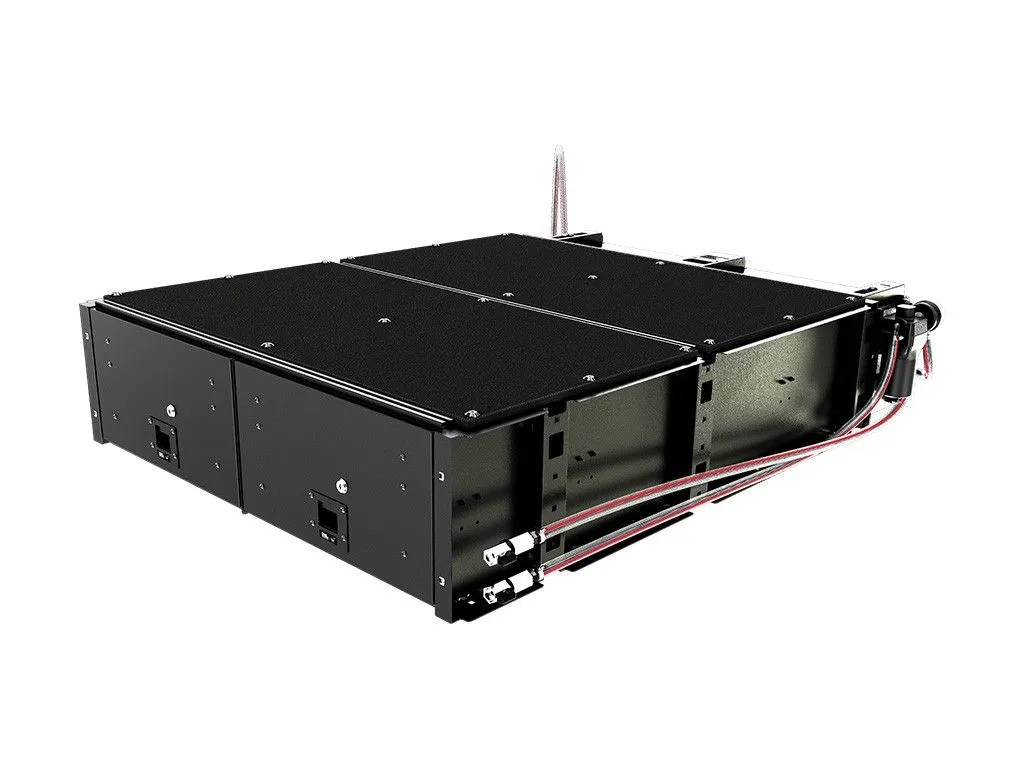

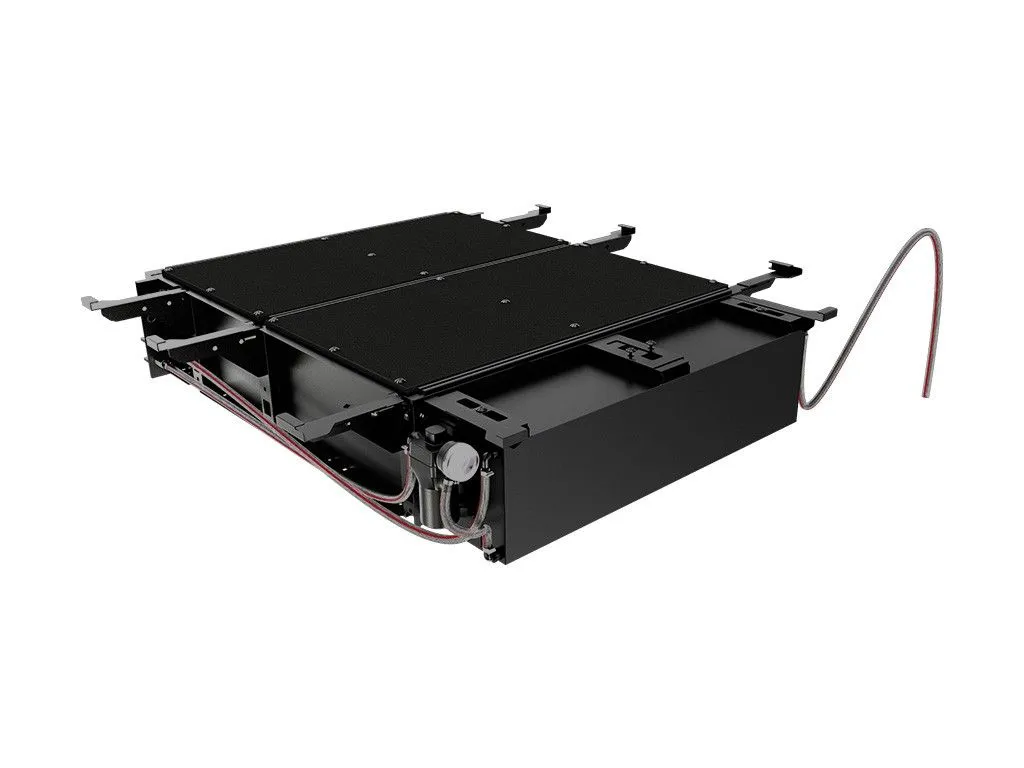

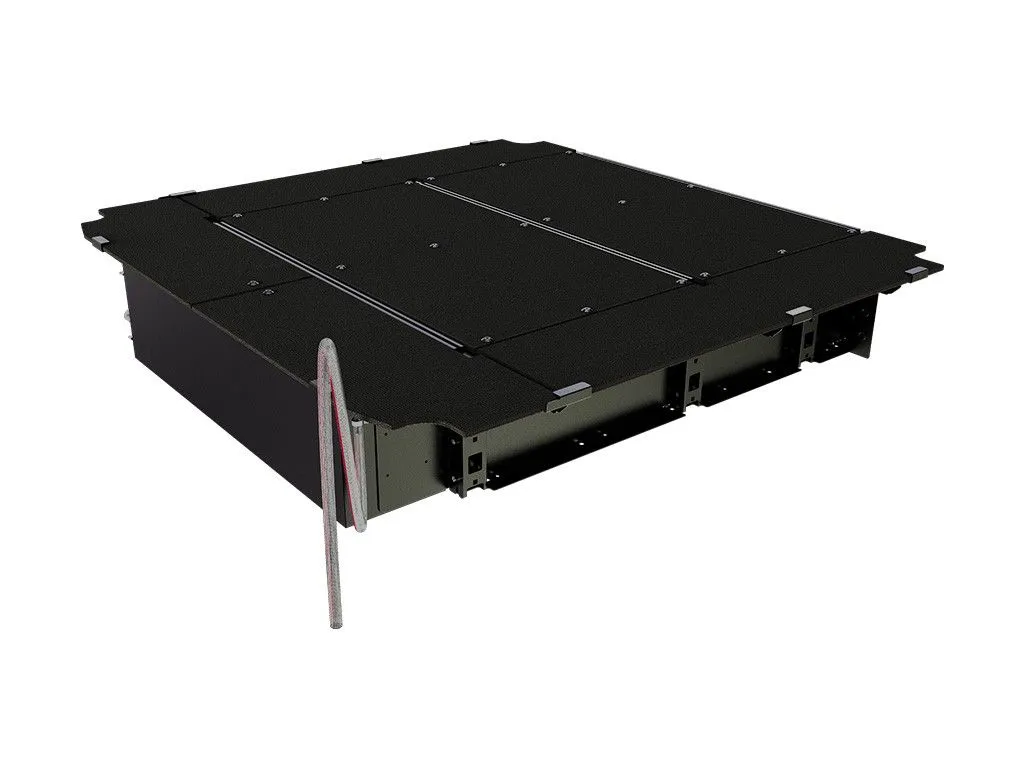

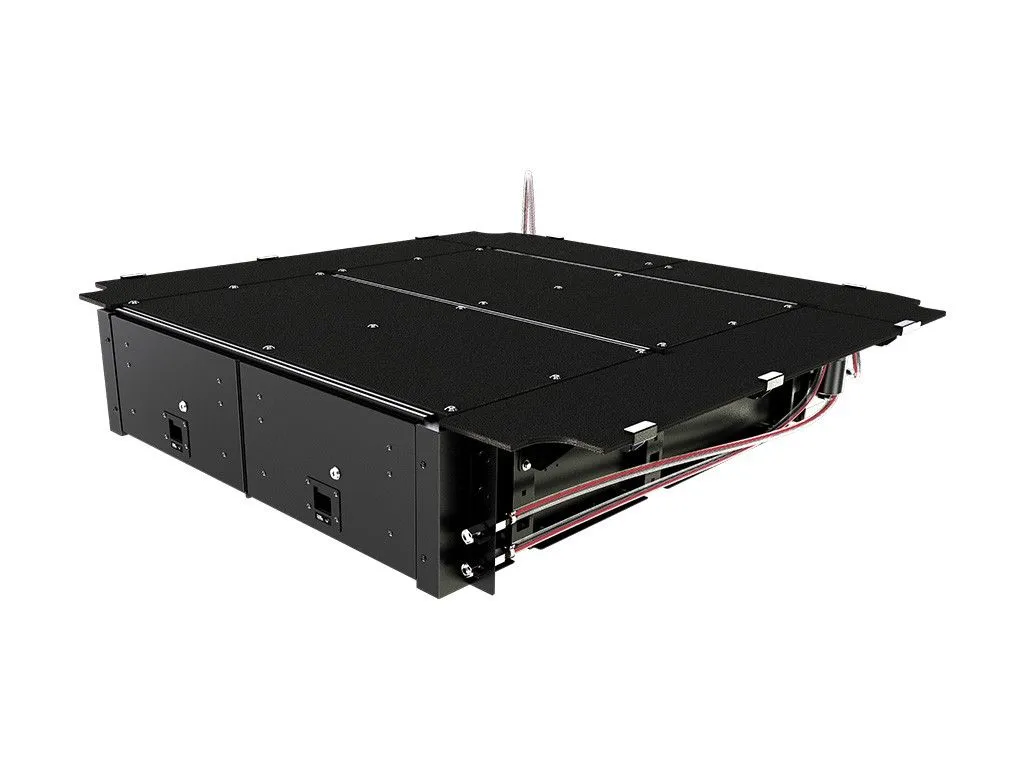

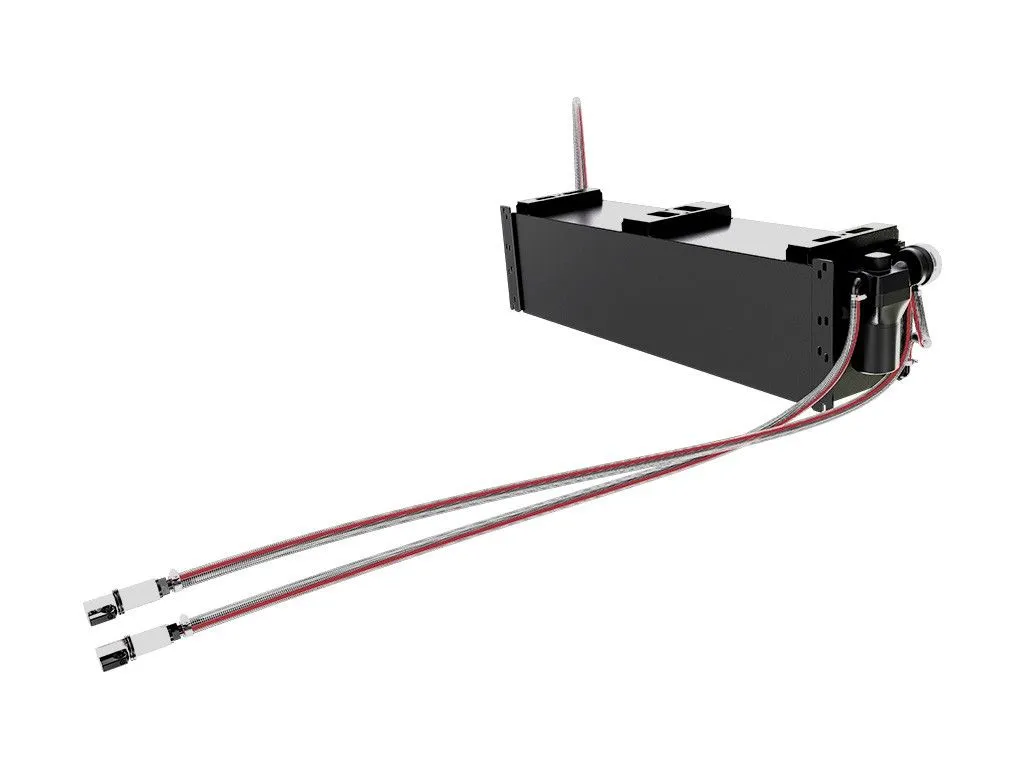

A 52L stainless steel water tank that fits behind the Front Runner Ute drawer system.
-

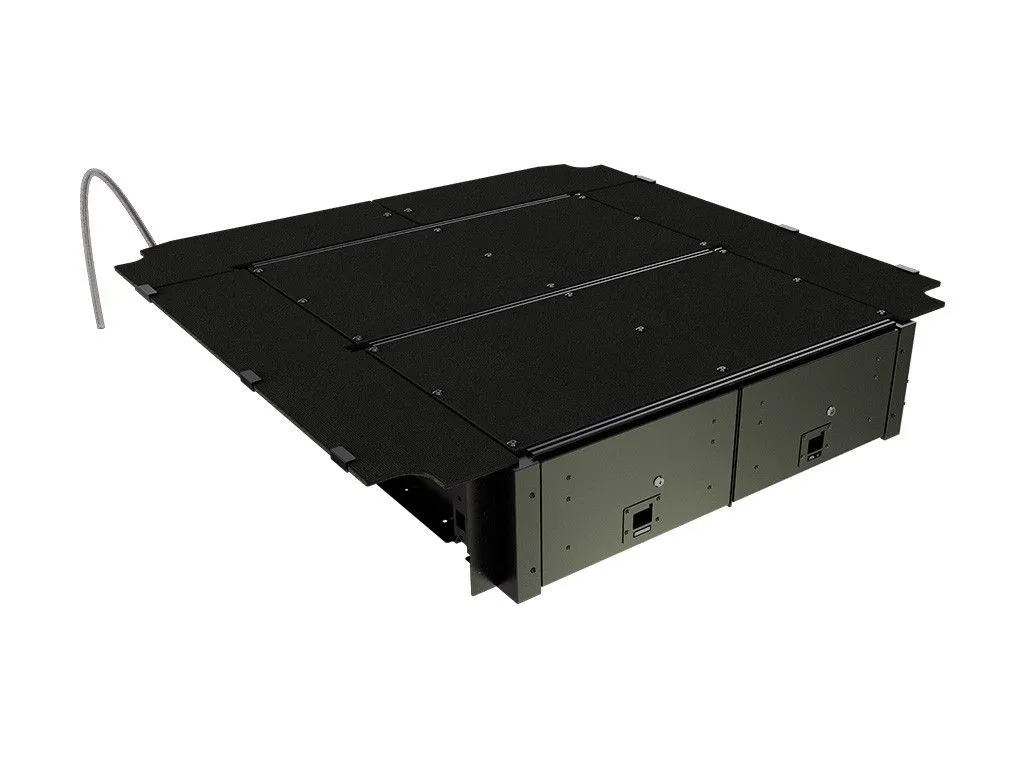

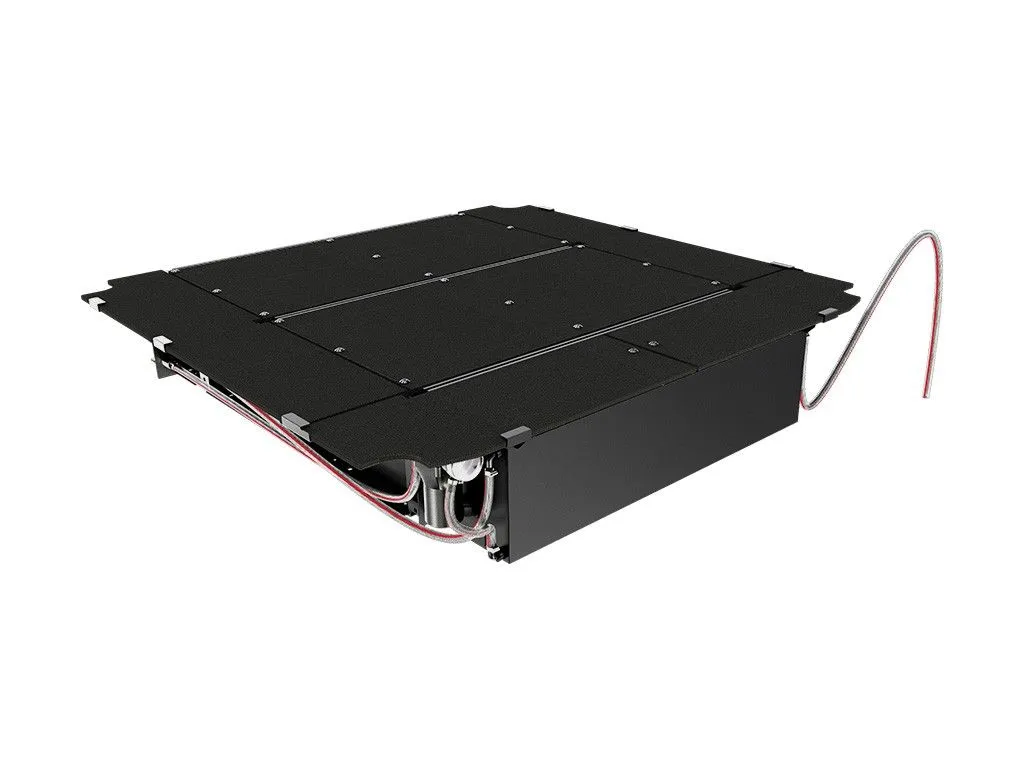

This water tank is placed below the drawer deck to utilize the space between the back of the drawer and the vehicle.
-

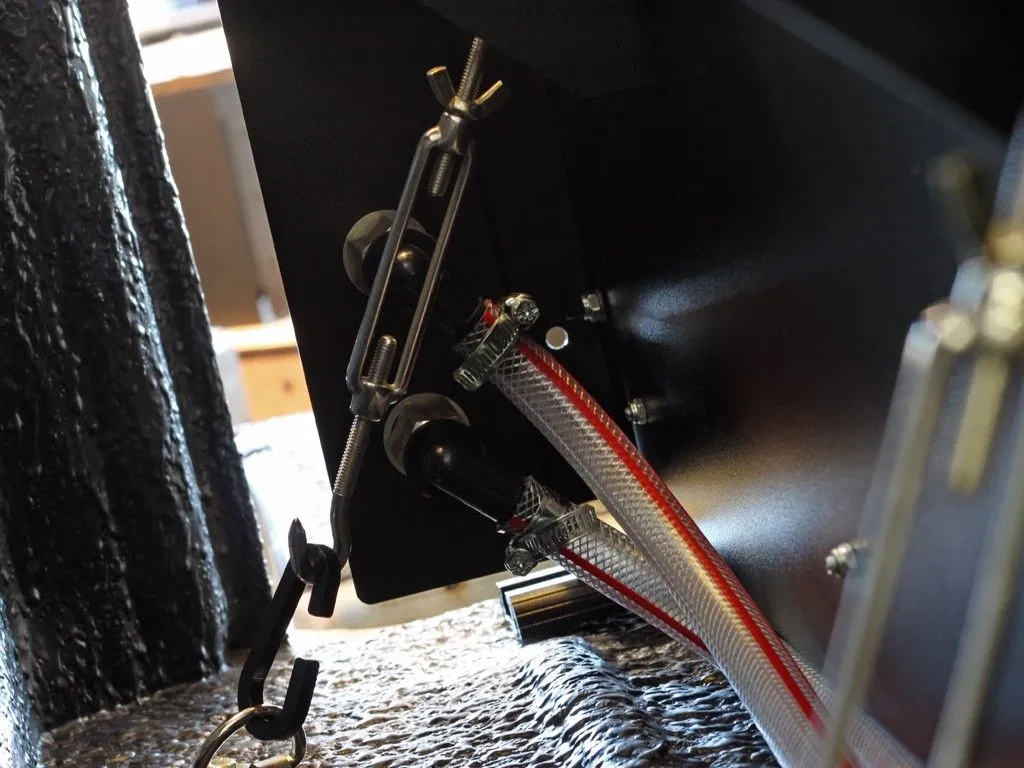

All piping and fittings are provided to plumb the tanks contents to the front of the drawer system for ease of use.
-

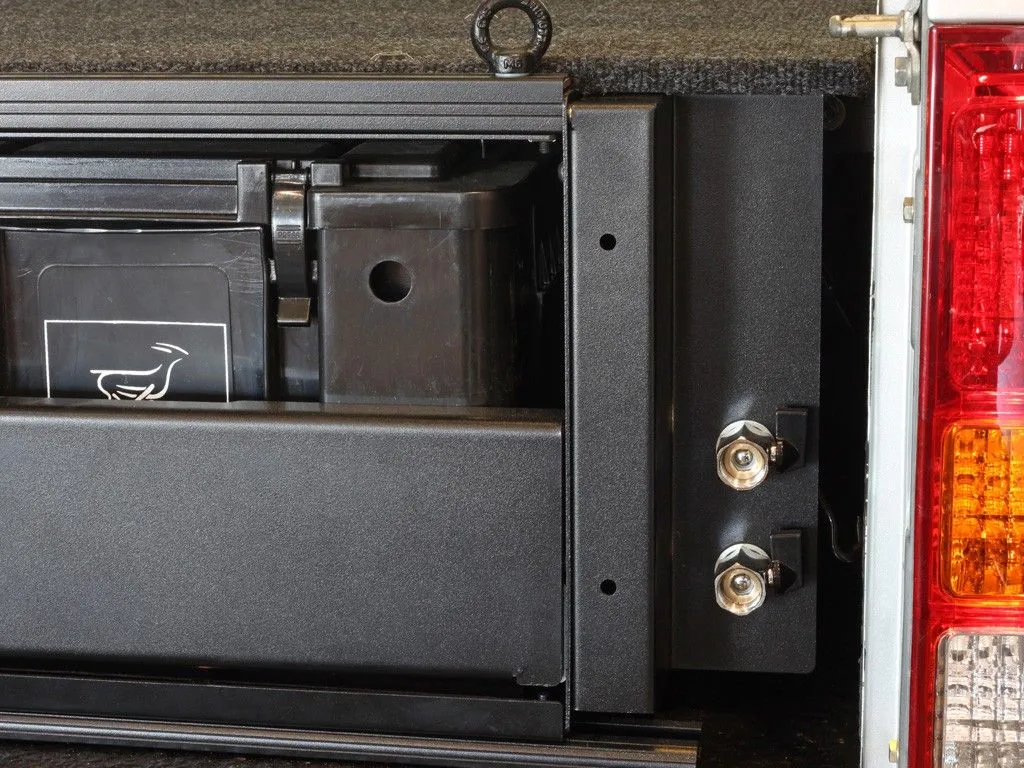

Knocked out holes in the drawer's side panel plate accommodates the fittings and ensures that all the pipe work is neatly hidden.
-
Additionally a 12 volt electric pump is included to increase the outlet pressure and flow rate.

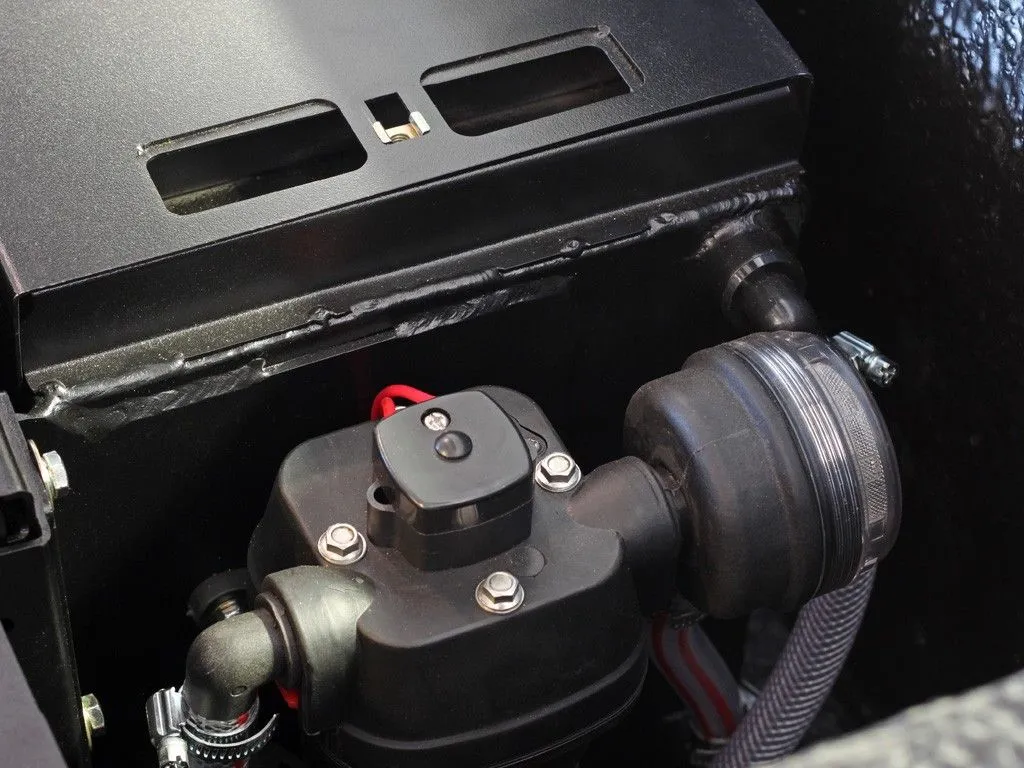

Water Pump:
Features:
-
Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes.
-
Compact design and plug-in port fittings make installation easy.
-
Can run dry without damage and handle liquids up to 130° F (54° C).
-
No metal contact with liquid being pumped.
-
Ball bearing drive throughout pump and motor assures longer pump life.
-
Excellent self-priming capability. Pump may be located above the liquid level.
-
Powerful, permanent magnet motor with low current draw and long life brushes.
Consists of:

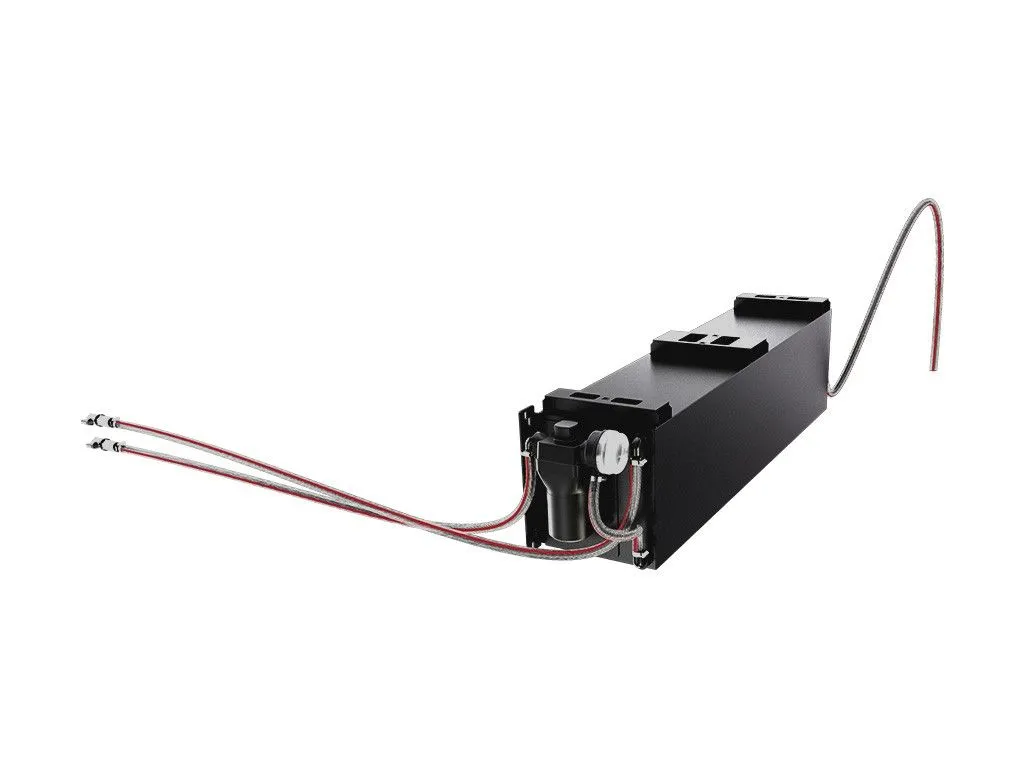

1 x Stainless Steel Water Tank
1 x Shut-off Valve
1 x 12V Water Pump
Pipe Kit
Installation Hardware
Water Tank:
Materials used:
304 Stainless Steel
Product Dimensions:
1065mm (41.9") W x 230mm (9.1") L x 285mm (11.2") H
Weight:
14.2kg (31.3lbs)
Water Pump:
Pump Specifications:
12 Volts
12.5 Liters per minute
35psi
Product Dimensions:
360mm (14.2") L x 135mm (5.3") W x 110mm (4.3") H
Weight:
2.13kg (4.7lbs)
Approximate Total Product Weight:
16.33kg (36lbs)
