Features

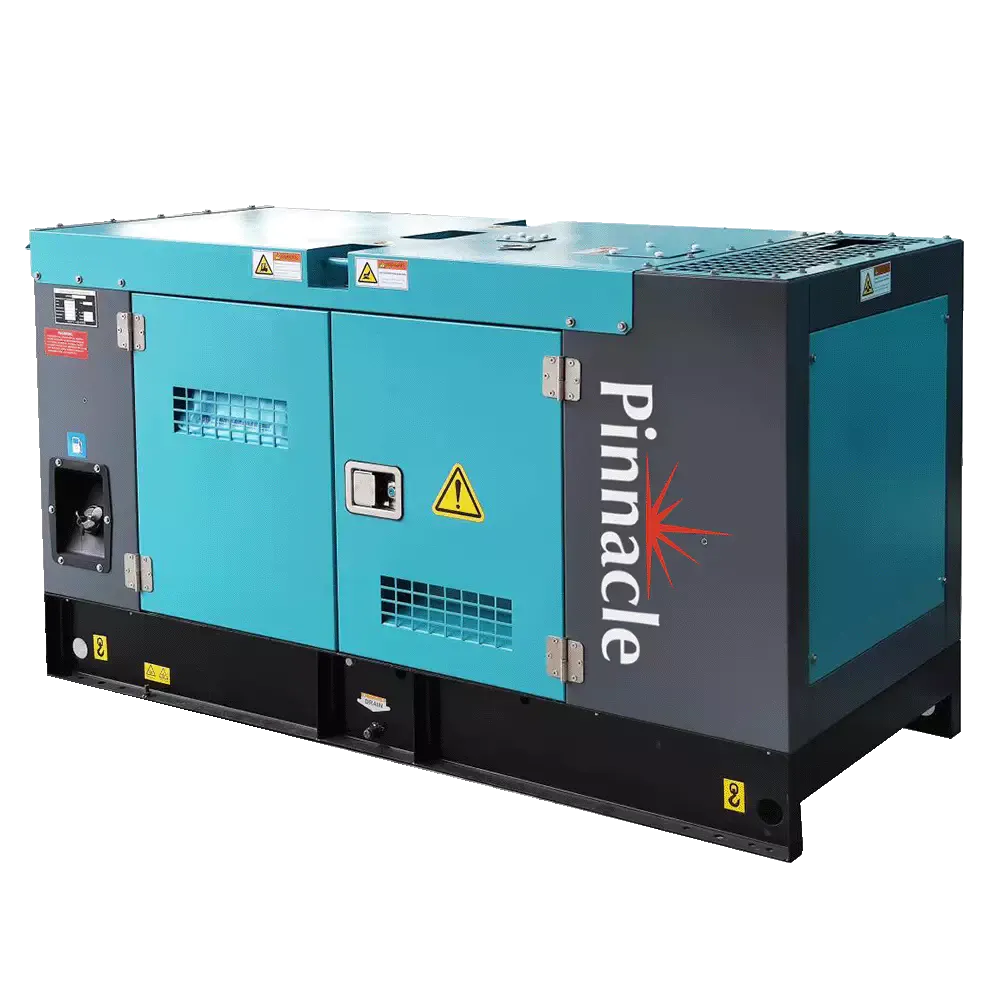

Crafted for industrial applications, our silent canopy generator functions quietly with a noise level as low as 73dB. Delivering sturdy backup power with 19kVA prime power and 22kVA standby power, it guarantees continuous operation, even in the event of power interruptions. Fueled by a diesel engine, it excels in both fuel efficiency and enduring performance, ensuring sustained and reliable power output.
Specifications
| Prime power | 19kVA |
| Standby power | 22kVA |
| Rated voltage line to line | 230V |
| Rated current | 25A |
| Maximum sound level | 73dB(A) |
Components
| Engine | SDEC |
| Model | 4Z3.2-G11 |
| Aspiration | Naturally Aspirated |
| Fuel system | Kangda |
| No. cylinders | 4 in line |
| Displacement | 2.7L |
| Bore*Stroke | 95*105mm |
| Compression ratio | 18:01 |
| Rated speed | 1500rpm |
| Rated net power (With fan) | 19Kw |
| Governor type | Electrical |
| Start Motor | 12V |
| Engine oil capacity | 10L |
| Lubrication system | Pressure feed |
| Oil pump type | Camshaft drive |
| Alternator | Technic |
| Model | TP184ES |
| Phase | 1 |
| Voltage | 230V |
| Wiring Type | 1 Phase 3 wire, Y type |
| Bearing | 1 |
| Power factor | 0.8 |
| Frequency | 50Hz |
| Prime power | 19kW |
| Exciter Type | Brushless, self-excitation |
| Voltage regulation | ±0.5% |
| Protection Grade | IP 23 |
| Insulation grade | H/H |
| Altitude | ≤1000m |
| Controller | Deepsea |
| Model | DSE6120 |
| Protective functions |
Low oil pressure High water temperature High/Low voltage High engine temperature Engine overspeed Voltage regulator Emergency stop Star failure |
| Aspiration System | |
|---|---|
| Max inlet pressure | 4kPa |
| Combustion volume | / |
| Air flow | 23.3m³/min |
| Exhaust system | Commercial |
| Exhaust gas flow | 8.9m³/min |
| Exhaust gas temperature | 480℃ |
| Max. pressure | 10kPa |
| Fuel system | Diesel |
| 100% load (Prime power) | 4.68L/h |
| 75% load (Prime power) | 3.6L/h |
| 50% load (Prime power) | 2.6L/h |
| Fuel tank capacity | 55L |
| Cooling system | Water cooled |
| Water capacity (Engine only) | 2.7L |
| Thermostat operation range | 72-82℃ |
| Max water temperature | 104℃ |
Box content
- 19kVA Generator
- 12V Battery
- Silent canopy housing
- Trailer optional extra. Price on request.
- Please note: Additional delivery charges may apply dependent on area and delivery service. Contact [email protected] for information.
Warranty
- All generators include a 1-year warranty / 1000hr
- Pinnacle South Africa warranty terms & conditions apply
- Online industrial Pty Ltd warranty terms & conditions apply
- All spare parts & backup are available on request by Online industrial Pty Ltd
