Features

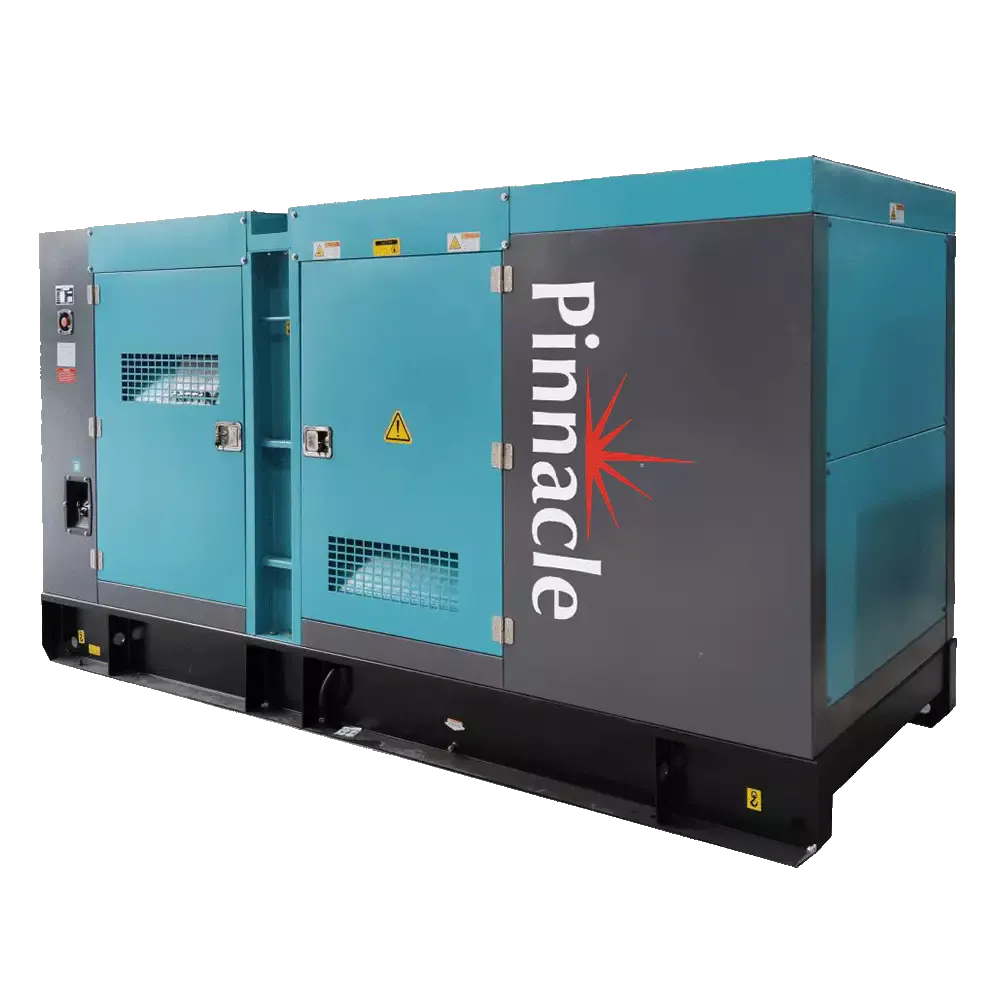

Our industrial-grade silent canopy generator is engineered to function with minimal noise, operating at a low level of 75dB. With a reliable power output of 150kVA as prime power and 165kVA as standby power, it guarantees uninterrupted operation, even in the event of power outages. Fueled by a diesel engine, it not only delivers fuel efficiency but also ensures long-lasting and efficient performance.
Specifications
| Prime power | 150kVA |
| Standby power | 165kVA |
| Rated voltage line to line | 400V 230V |
| Rated current | 228A |
| Maximum sound level | 75dB(A) |
Components
| Engine | SDEC |
| Model | 6HTAA6.5-G22 |
| Aspiration | Turbocharged, aftercooler |
| Fuel system | Longkou in-line “P” type |
| No. cylinders | 6 in line |
| Displacement | 6.5L |
| Bore*Stroke | 105*124mm |
| Compression ratio | 16:1 |
| Rated speed | 1500rpm |
| Rated net power (With fan) | 140kVA |
| Governor type | Electronic |
| Start Motor | 24V |
| Engine oil capacity | 17.5L |
| Lubrication system | Pressure feed |
| Oil pump type | Camshaft drive |
| Alternator | Technic |
| Model | TP274F/S |
| Phase | 3 |
| Voltage | 400V 230V |
| Wiring Type | 3 Phase 4 wire, Y type |
| Bearing | 1 |
| Power factor | 0.8 |
| Frequency | 50Hz |
| Prime power | 120kW |
| Exciter Type | Brushless, self-excitation |
| Voltage regulation | ±0.5% |
| Protection Grade | IP 23 |
| Insulation grade | H/H |
| Altitude | ≤1000m |
| Controller | Deepsea |
| Model | DSE6120 |
| Protective functions |
Low oil pressure High water temperature High/Low voltage High engine temperature Engine overspeed Voltage regulator Emergency stop Star failure |
| Aspiration System | |
|---|---|
| Max inlet pressure | 6kPa |
| Combustion volume | / |
| Air flow | 10.5m³/min |
| Exhaust system | Commercial |
| Exhaust gas flow | 24.8m³/min |
| Exhaust gas temperature | 600℃ |
| Max. pressure | 8kPa |
| Fuel system | Diesel |
| 100% load (Prime power) | 33.1L/h |
| 75% load (Prime power) | 25.2L/h |
| 50% load (Prime power) | 17.6L/h |
| Fuel tank capacity | 380L |
| Cooling system | Water cooled |
| Water capacity (Engine only) | 9.6L |
| Thermostat operation range | 82-95℃ |
| Max water temperature | 104℃ |
Box content
- 150kVA Generator
- 12V Battery
- Silent canopy housing
- Trailer optional extra. Price on request.
- Please note: Additional delivery charges may apply dependent on area and delivery service. Contact [email protected] for information.
Warranty
- All generators include a 1-year warranty / 1000hr
- Pinnacle South Africa warranty terms & conditions apply
- Online industrial Pty Ltd warranty terms & conditions apply
- All spare parts & backup are available on request by Online industrial Pty Ltd
